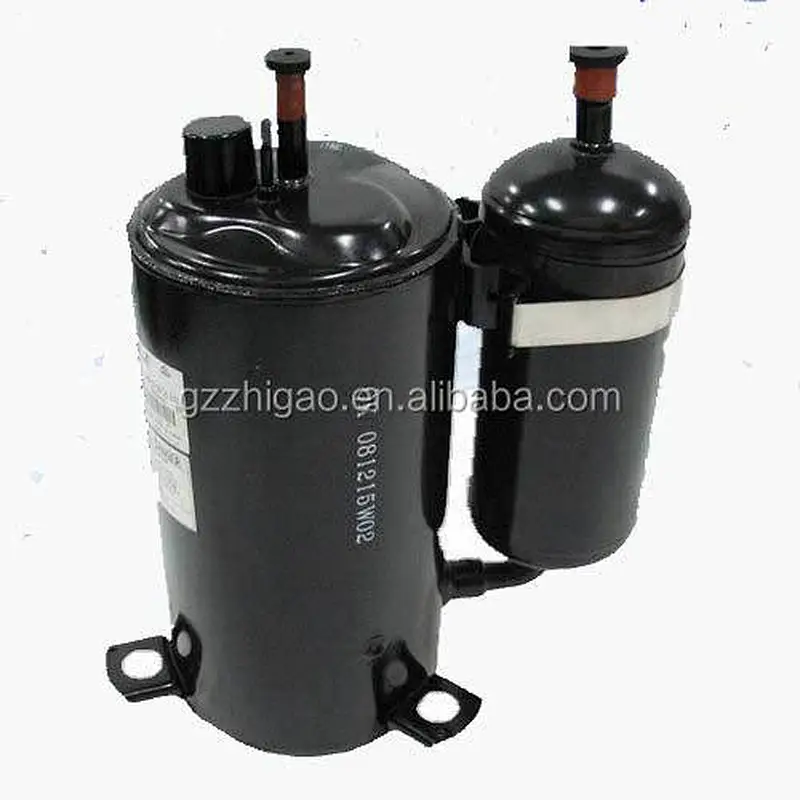

Characteristics of Panasonic compressor A/C Rotary Compressor
Product description
1.High-efficiency.
2.Energy-saving.
3.In order to decrease loss of machine and gas circulation in the process of design and increase high efficiency of the motor and the compressor, optimal matching clearance between dynamic and static parts is adopted.
4.High-efficient compressor can also make room air-conditioner high efficient; Compact, Light.
5.Comparing with traditional compressors, there are comparably less mechanical parts in the compressor and the motor is directly fitted on the shell, so Matsushita compressor is compact and light, which makes room air-conditioner much more compact.
6.We can supply more Panasonic compressor models as below:
1) R22, 220V-240V / 380V~ 50HZ
| Model | Capacity | Capacitor | Voltage | gas | pallet | |
| W | BTU/H | |||||
| 2R11B225ASE | 1745 | 5954 | 12.5UF/460v | 220V-240V 50HZ | R22 | 64 |
| 2P14S225ANE | 2220 | 7575 | 30uf/370v | 220V-240V 50HZ | R22 | 60 |
| 2P17S225ANQ | 2770 | 9451 | 30uf/370v | 220V-240V 50HZ | R22 | 60 |
| 2P20C225BNG | 3245 | 11072 | 30uf/400v | 220V-240V 50HZ | R22 | 50 |
| 2K22S225BUA | 3835 | 13085 | 35uf/370v | 220V-240V 50HZ | R22 | 50 |
| 2K25S225BUA | 4245 | 14475 | 40uf/370v | 220V-240V 50HZ | R22 | 50 |
| 2K28C225DUA | 4665 | 15900 | 45uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V32S225AUA | 5410 | 18459 | 60uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V34S225AUA | 5810 | 19824 | 60uf/400v | 220V-240V 50HZ | R22 | 40 |
| 2V36S225BUA | 6140 | 20950 | 50uf/400v | 220V-240V 50HZ | R22 | 40 |
| 2V42S225AUA | 7200 | 24566 | 50uf/370v | 220V-240V 50HZ | R22 | 40 |
| 2V44W385AUA | 7670 | 26154 | 60uf/370v | 380V 50HZ | R22 | 40 |
| 2V47W385AUA | 8235 | 28098 | 60uf/400v | 380V 50HZ | R22 | 40 |
2) R22, 220V / 115V~ 60HZ
| Model | HP | Capacity(btu) | Voltage/Refrigerant | pallet |
| 2R11S3R236A6A | 0.75HP | 7200 | R22 220V~60HZ | 60 |
| 2P14S3R236A1A | 1HP | 9200 | R22 220V~60HZ | 50 |
| 2P19S3R236A1A | 1.5HP | 12700 | R22 220V~60HZ | 50 |
| 2P20S236A1G | 1.5HP | 13400 | R22 220V~60HZ | 50 |
| 2K25S236AHA | 2HP | 17900 | R22 220V~60HZ | 50 |
| 2K28C226AUC(T3) | Big2HP | 20700 | R22 220V~60HZ | 40 |
| 2V34S236AUA | 2.5HP | 24900 | R22 220V~60HZ | 40 |
| 2P14S126B1L | 1HP | 9200 | R22 115V~60HZ | 60 |
| 2P19S126B1F | 1.5HP | 12700 | R22 115V~60HZ | 50 |

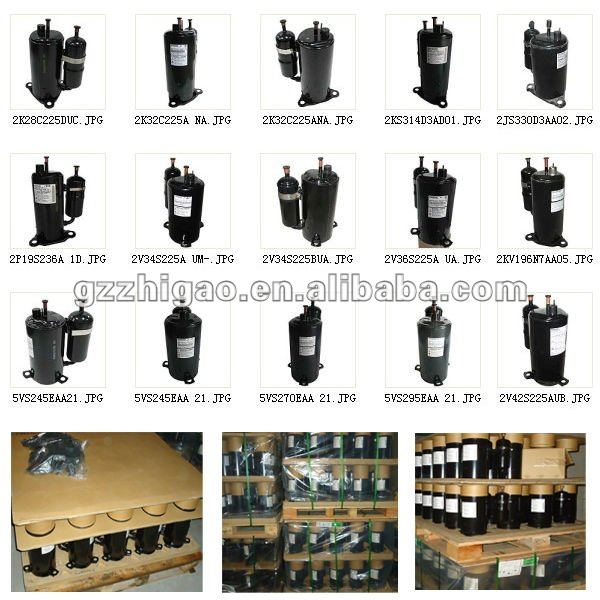

Reference pictures

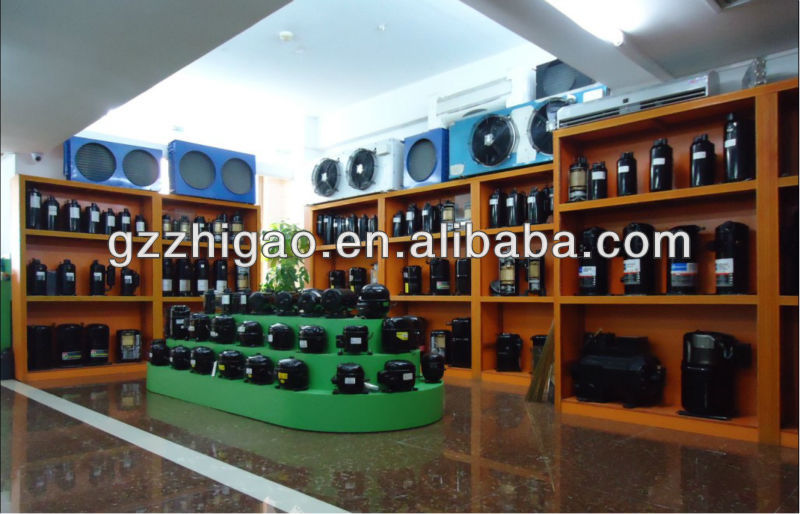

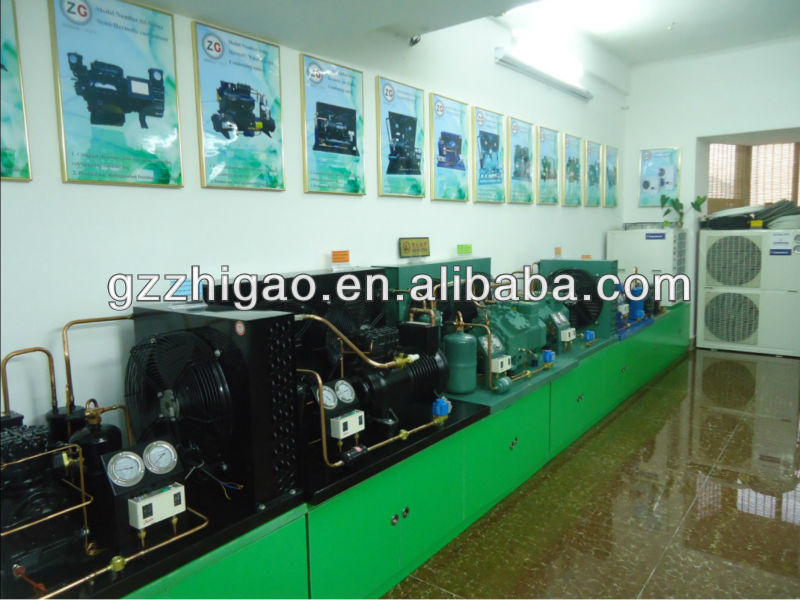

Showroom pictures

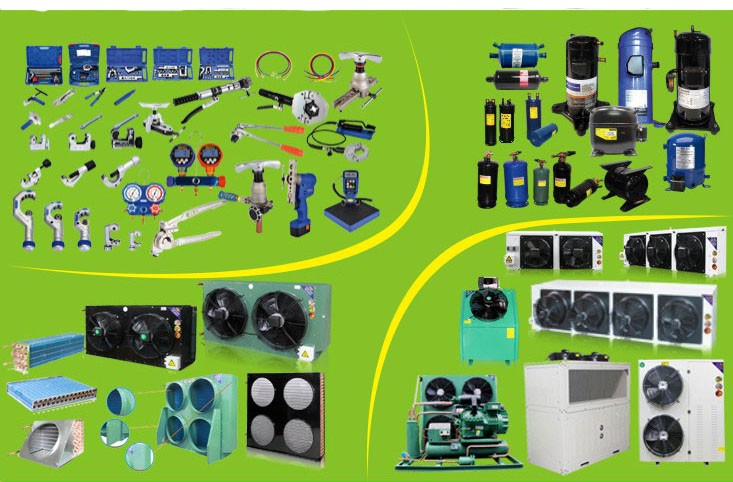

Our serives
1.Scroll,Rotary,piston and semi-hermetic compressor;
2.Refrigeration spare parts:gauge,valve,tools andetc;
3.Refrigeration gas and oil;
4.OEM Air cooler and condenser,air curtain;
5.compressor unit and condenser unit,door for cool room.
Referance picture

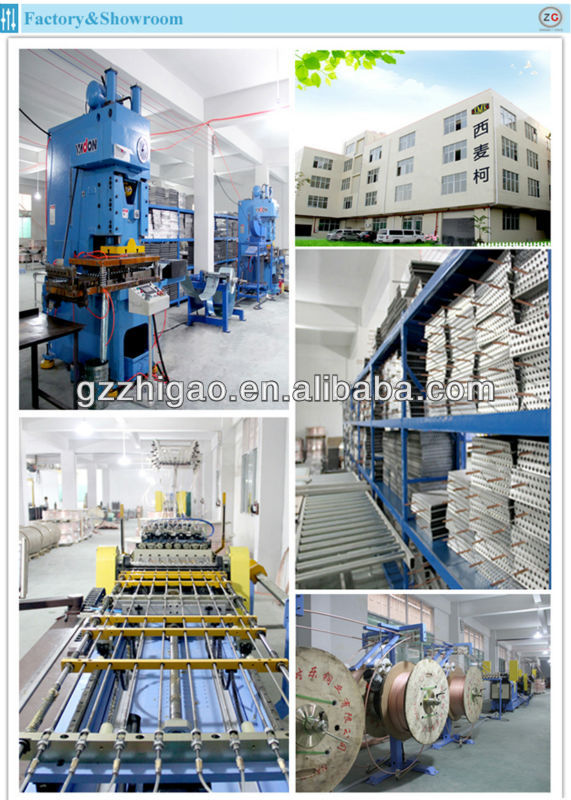

Factory View
Guangzhou Xi Maike General refrigeration equipment Co.Ltd.is a professional large-scale modern enterprise which is engaged in refrigeration fittings.Product R&D production and sales.
To know more about us,you could visit our websit: www.gzzhigao.net
FAQ
Q:What payment term could be accepted?
A:We could accept T/T,Western union,L/C and paypal.
Q:Could I get a sample before pay an order?
A:Of course.But It need you pay money.And we wuld refund the difference to you o you order.
Q:What shipping way could you supply?
A:By sea,air or international express.
Q:Are the quantity is more,the price would be different?
A:yes,the quantity is more,the price would be cheaper.
