LG rotary compressor:
Description:
1. high efficiency design
2. high reliability
3. low vibration& noise
Specification:
Compressor Model Name:QVS325PMA
Compressor Type:Hermetic Motor Compressor
Compression Type:Rotary Type
Application:Refrigeration system (Cooling & Heating)
Power Source:220-240V ~ 50Hz 1PH LRA53
Cooling Capacity:18,950 / 19,050 Btu/h;5,553 / 5,582 W
Refrigerant:R22
Oil / Oil Charging Amount:4GSI or NM56M / 540±10 cc
Displacement:32.5 / rev
Power Input:1,740 / 1,850 W
COP:3.19 / 3.02 W/W
Running Current:8.15 / 8.35 [A]
Net Weight ( Including Oil ):19.18 kg
More QJ series LG compressor model as follow:
| Power Source | Model | Cooling Capacity | Motor Input | EER | COP | Oil Charge | ||||||
| [Btu/hr] | [Watts] | [Watts] | [Btu/W.hr] | [W/W] | [cc] | |||||||
| 1PH, 220V , 50Hz | QK145H | 8400 | 2462 | 785 | 10.7 | 3.14 | 350 | |||||
| QK156H | 9000 | 2637 | 841 | 10.7 | 3.14 | 350 | ||||||
| QK164H | 9550 | 2799 | 893 | 10.7 | 3.14 | 350 | ||||||
| QK175H | 10000 | 2930 | 952 | 10.5 | 3.08 | 350 | ||||||
| QK222H | 12950 | 3795 | 1210 | 10.7 | 3.14 | 350 | ||||||
| QKS156H | 9000 | 2637 | 818 | 11.0 | 3.22 | 350 | ||||||
| QKS164H | 9600 | 2813 | 873 | 11.0 | 3.22 | 350 | ||||||
| QKS185H | 10800 | 3165 | 1000 | 10.8 | 3.16 | 350 | ||||||

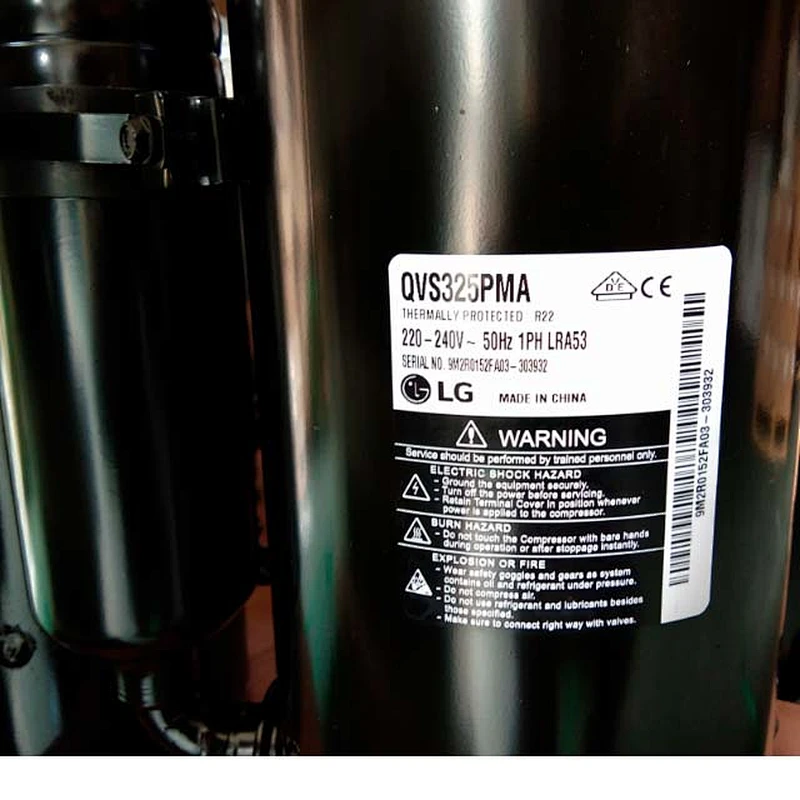

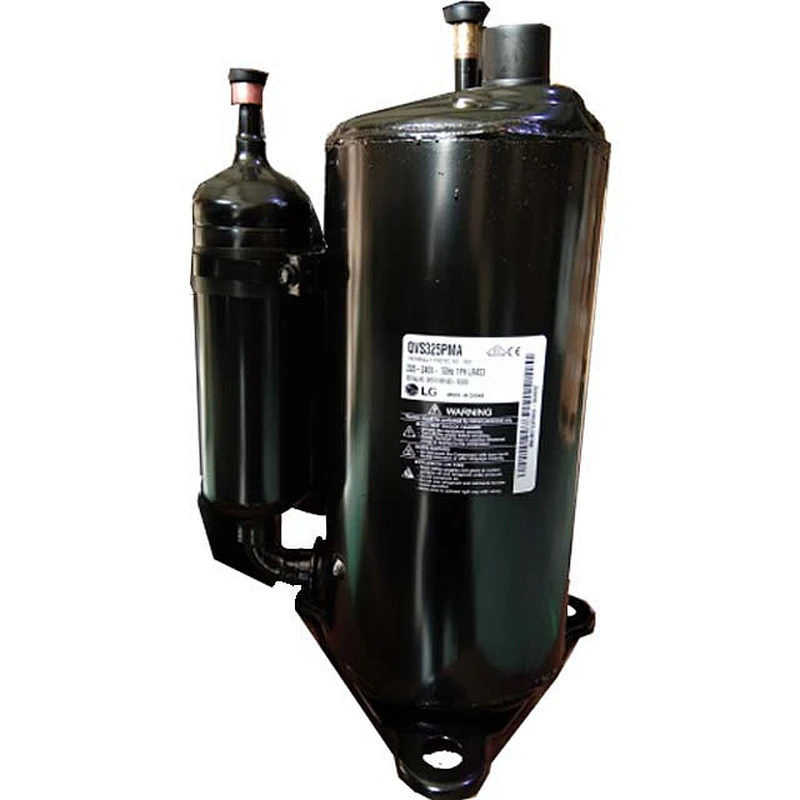

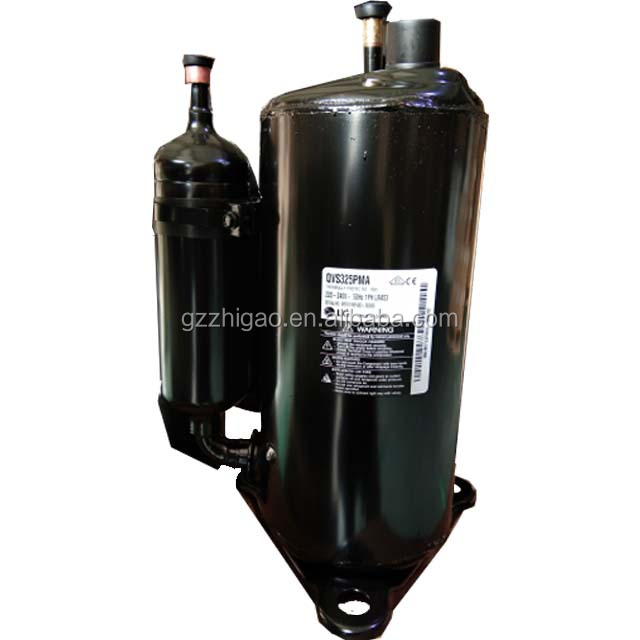

reference pictures:

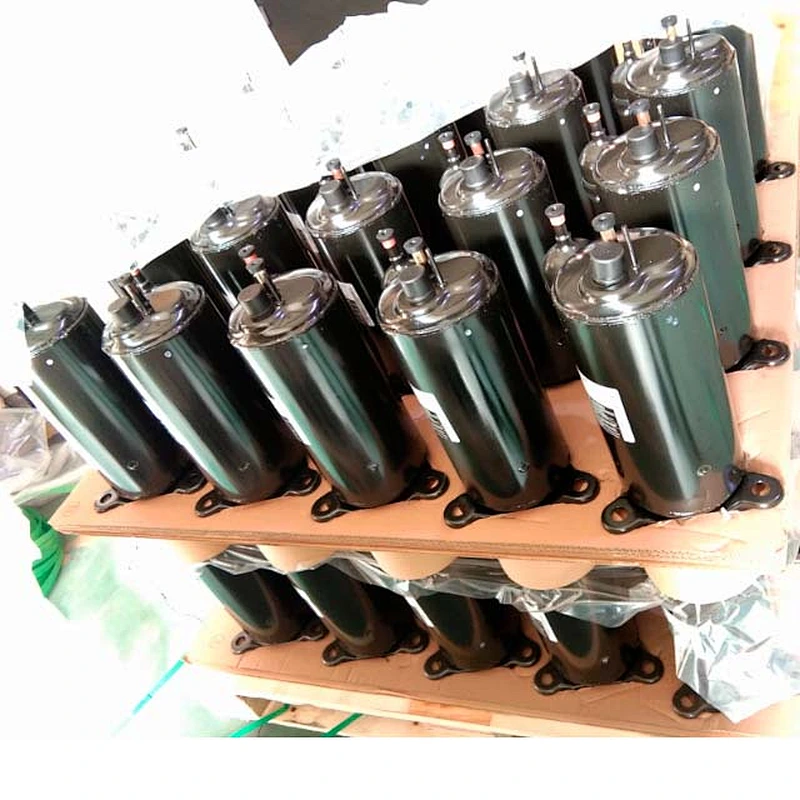

Packing:
