After-sales Service Provided:None
Warranty:None
Power Source:Electric
Application:Commercial, Outdoor,Commercial,Household
Type:COMPRESSOR, Air Conditioner Parts
Place of Origin:China
Brand Name:LG
Model Number:QK222PFA
Displacement:22.2 cc/rev
Lubrication Style:Lubricated
Refrigerant:R22
Oil / Oil Charging Amount:SUNISO 4GSI or NM56M / 700±10cc
Refrigerating capacity:3,883/3,941W13,250/13,450 Btu/h
Input Power:1,275/1,350 W
COP:3.05/2.90W
LRA:39 Amps.
Certification:RoHS

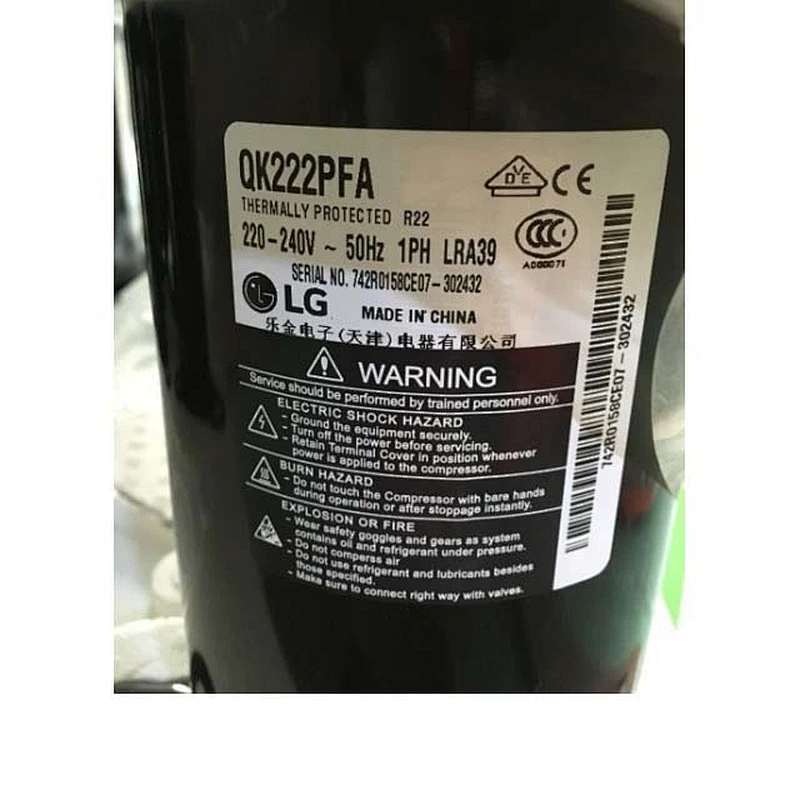

1,QK222PFA Product Detail:

Compressor Model Name:QK222PFA
Compressor Type:Hermetic Motor Compressor
Compression Type:Rotary ( Rolling Piston Type )
Power Source:220-240V ~ 50Hz 1PH LRA 39
Refrigerating capacity:3,883/3,941W13,250/13,450 Btu/h
Refrigerant:R22
Oil / Oil Charging Amount:SUNISO 4GSI or NM56M / 700±10cc

Packing:48pcs/pallet

2,More QJ series LG compressor model as follow:

Power Source	Model	Cooling Capacity				Motor Input (Watts)		EER (w/w)		COP (w/w)		Oil Charge (cc)	Dimension(mm)
Power Source	Model	(Btu/hr)		(Watts)		Motor Input (Watts)		EER (w/w)		COP (w/w)		Oil Charge (cc)	A	B	C	D	E
1PH,220-240V	GP270P	23100	23400	6769	6857	2347	2392	9.9	9.7	2.88	2.87	700	295	292	53.3	75	123.4
	GP280P	23700	23900	6945	7004	2370	2439	10	9.8	2.93	2.87	700	295	292	53.3	75	123.4
	GP290P	24700	24900	7238	7297	2470	2541	10	9.8	2.93	2.87	700	295	328	53.3	90	132.5

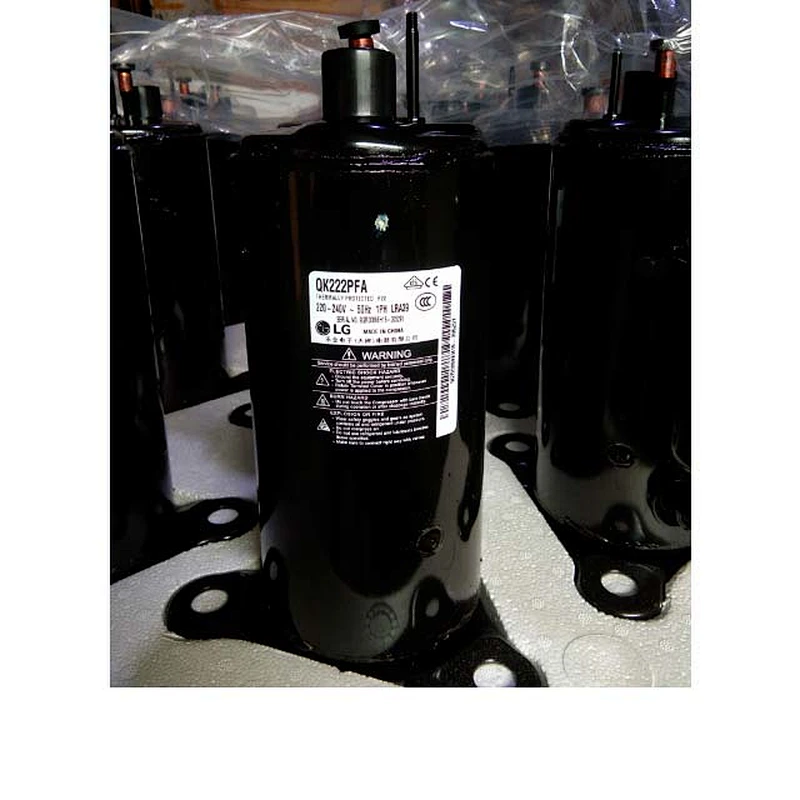

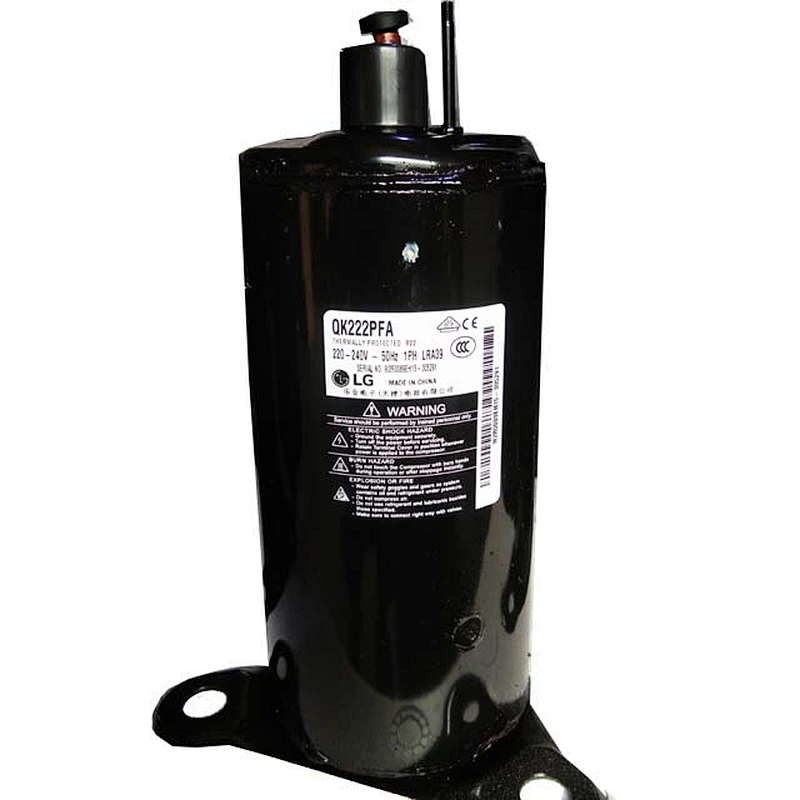

Detailed Images

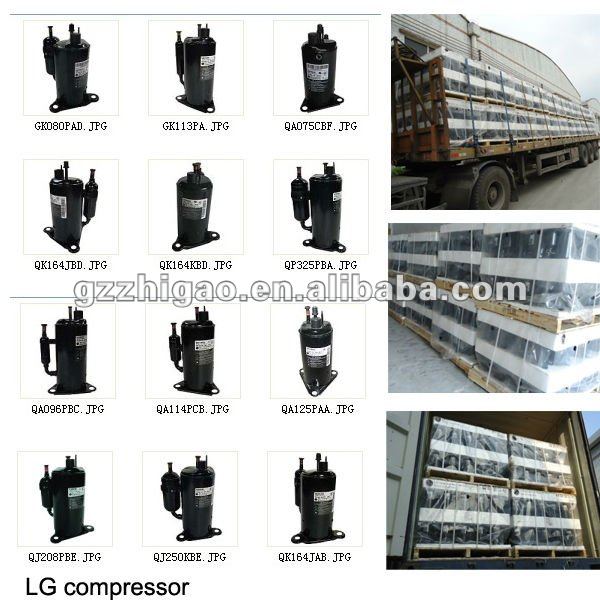

3,Packing& Loading Pictures:

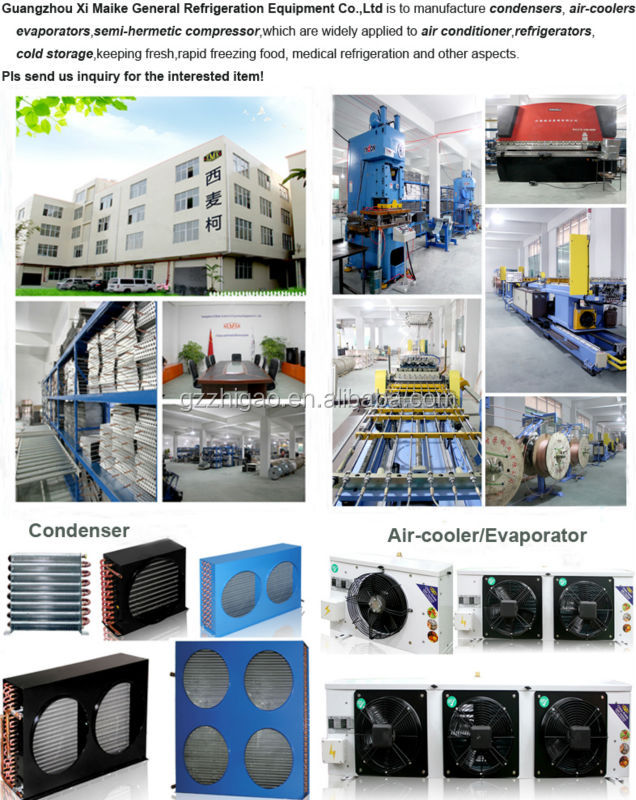

4,About Us:

Professional supply:Compressor,Refrigeration spare part,Refrigeration tools

Condensing unit,Refrigerant,Semi-hermetic compressor Etc

For compressor,We supply following brands.

1.Rotary compressor:LG,Landa(Gree),Toshiba,Panasonic
2.Scroll:Copeland,Danfoss performer,hitachi,Daikin,Sanyo
3.Piston:Maneurop MT,NTZ,MTZ series.
4.Freezer compressor:Tecumseh,Ampera,embraco,wanbao,LG,Samsung
5.Semi-hermetic:Copeland,bitzer
