Warranty:other
Customized support:OEM
Place of Origin:Jiangsu, China
Brand Name:Elitech
Model Number:STC-100A
Power supply:220VAC±10%/-15%,50/60Hz
Power consumption:≤3W
Temperature measuring range:-40℃~99℃
Temperature controlling range:-40℃~99℃
Resolution:1℃
Accuracy:±1℃,±0.5digit
Relay output capacity:10A(0.5HP)/220VAC
Sensor type:NTC sensor
Operating temperature:0℃~60℃
Storage temperature:-30℃~75℃
Certification:ISO

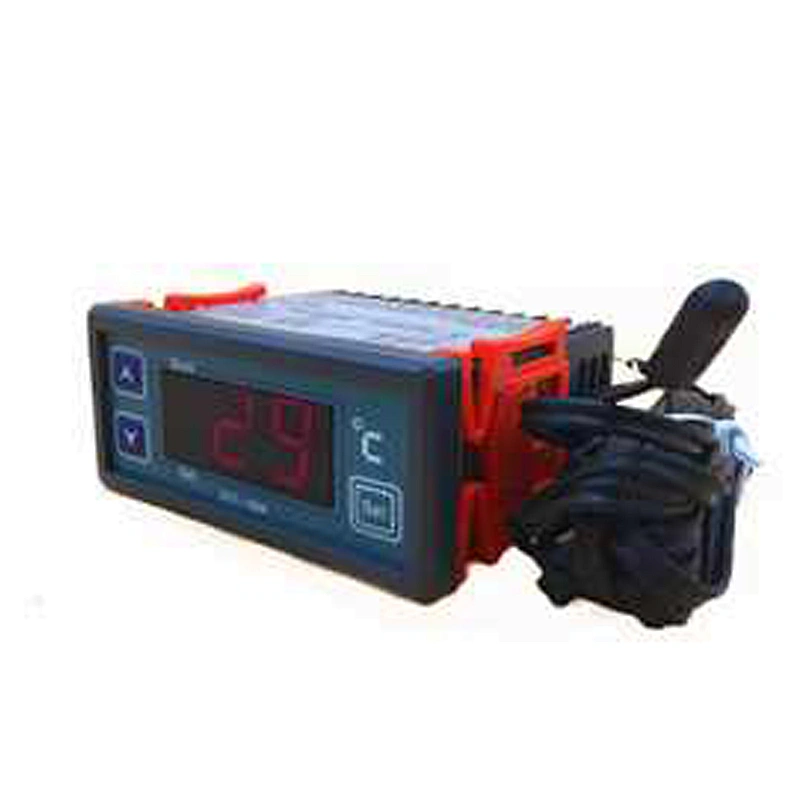

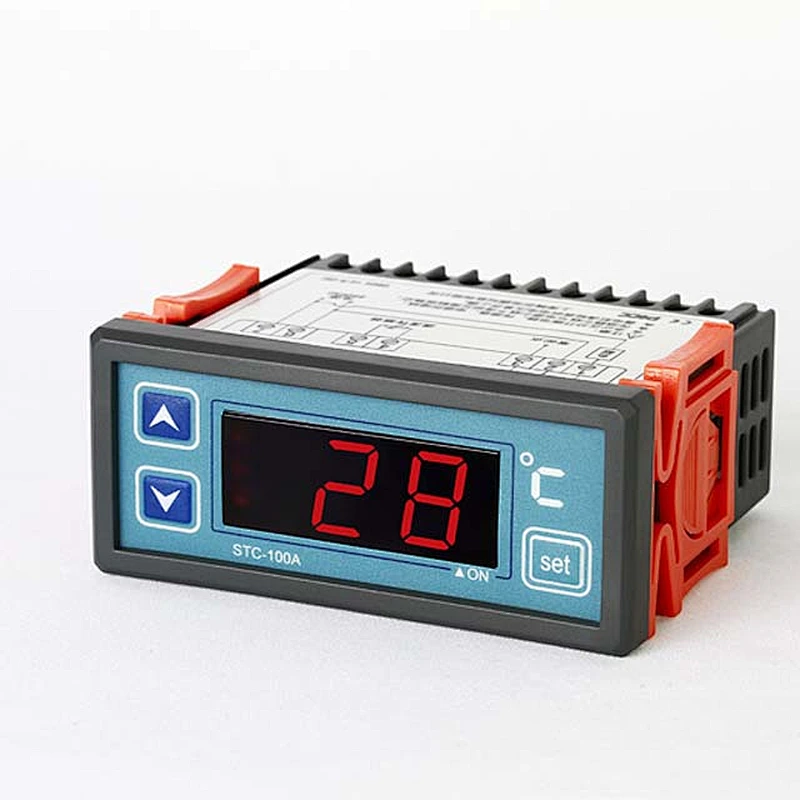

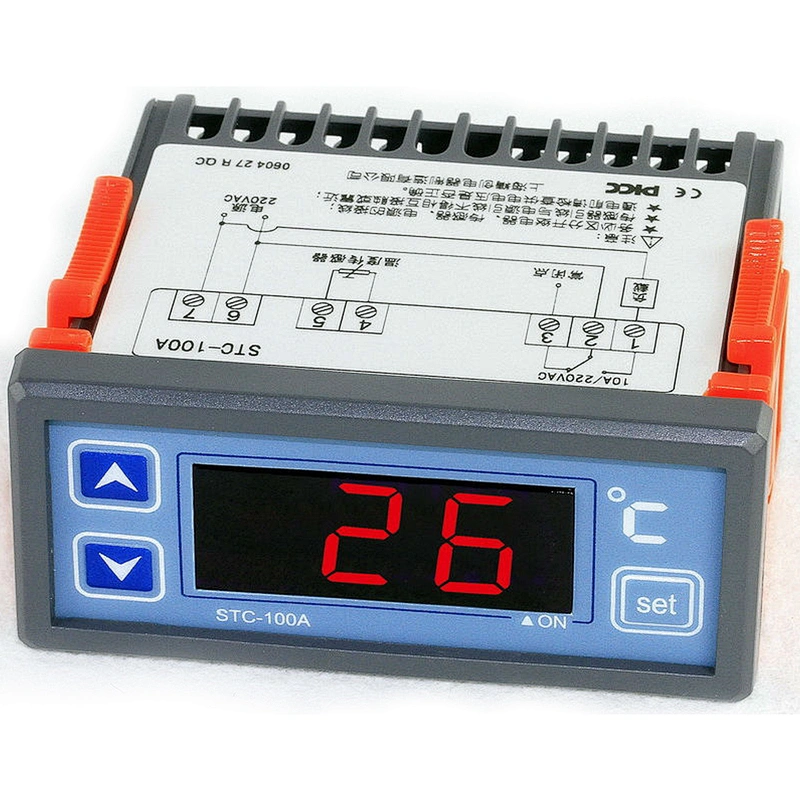

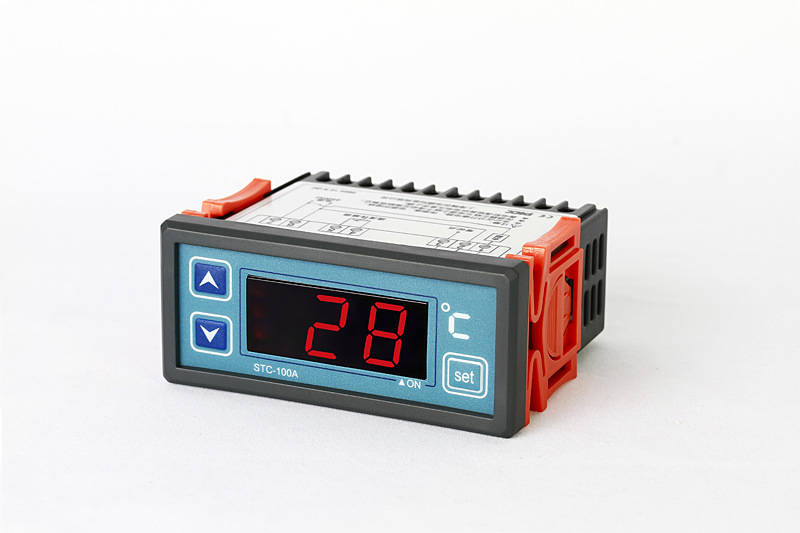

Refrigerating & Heating temperature controller digital thermostat STC-100A

Suitable for direct cold kitchen cabinets, seafood machine, chiller, all kinds of high temperature cold storage, and some small refrigeration and heating equipment

STC-100A

Features and functions:
Switch the mode between heating and refrigerating;
Controlling the temperature by adjusting both the temperature setting value and difference value;
Delay protection when refrigerating and heating starts;
Limit the temperature setting range;
Calibrate the temperature;
Alarm when sensor error;

Specification:
Product size:77*34.5*62mm
Front panel size:77*34.5mm
Installation size:71*29mm

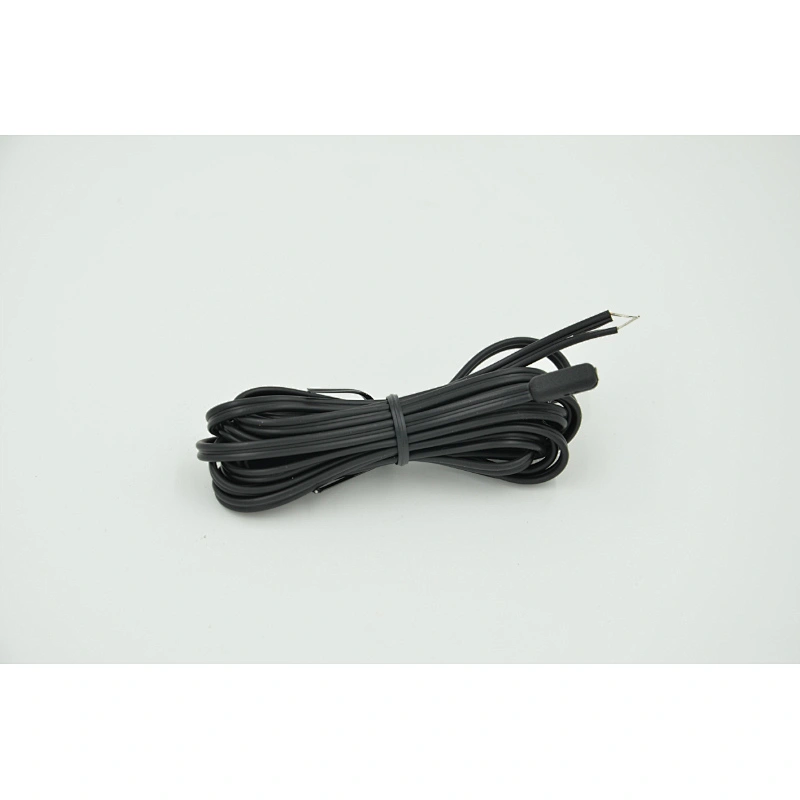

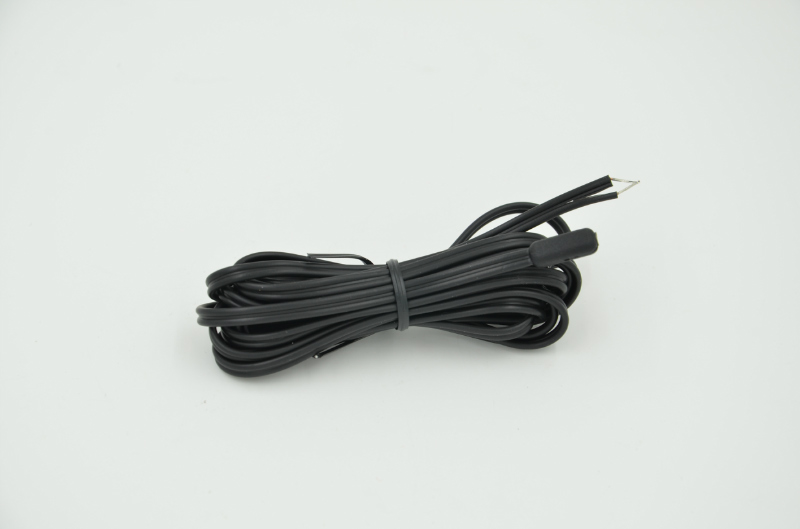

Sensor:2 meters(probe included)

Technical parameters:
Power supply:220VAC±10%/-15%,50/60Hz
Power consumption:≤3W
Temperature measuring range:-40℃~99℃
Temperature controlling range:-40℃~99℃
Resolution: 1℃
Accuracy:±1℃,±0.5digit
Relay output capacity:10A(0.5HP)/220VAC
Delay time when sensor error:1 min
Sensor type:NTC sensor
Safety level of the front panel:IP54
Operating temperature:0℃~60℃
Storage temperature:-30℃~75℃
Relative humidity:20%~85%(No condensate)

Package Included:

1 * Temperature Controller

1 * Temperature sensor

1 * Instruction Manual

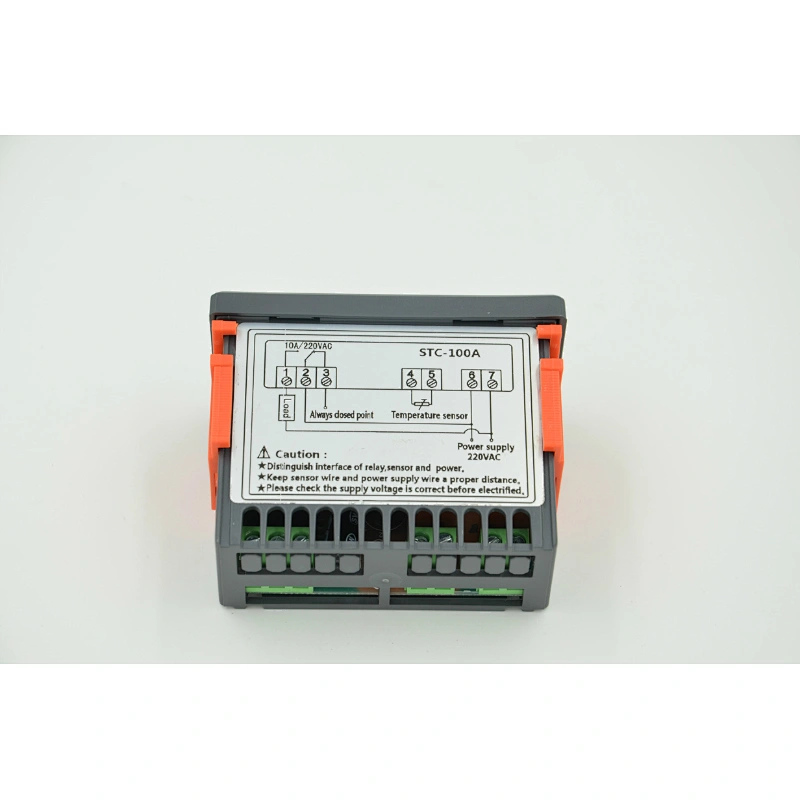

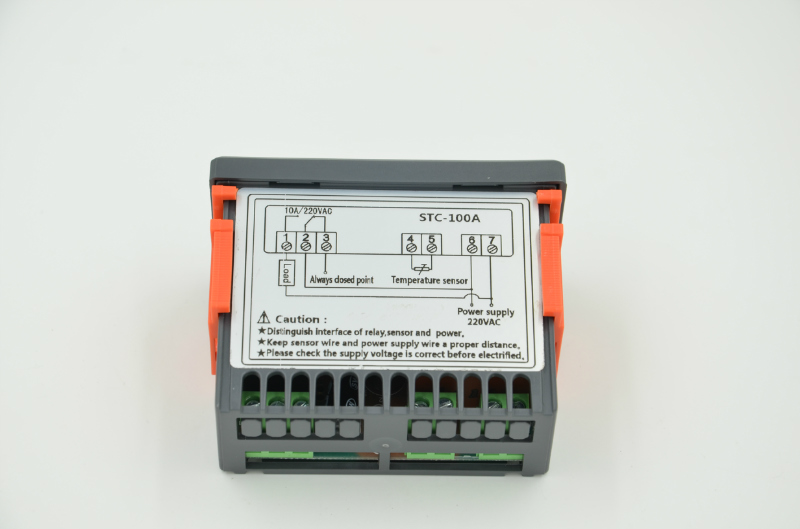

Detailed Images
