广州制高冷冻设备有限公司About UsRoom1305, No.236 the sixth Zhongshan Road,Yuexiu district, GuangzhouGuangzhou Zhigao Freeze Equipment Co., Ltd. is a professional manufacture and trading company with over 20 years experiences to provide OEM and one-stop shopping for customers. We have over 24000m2 workshop,show room, retail shops and offices in Guangzhou.The company's leading products include air condensers, various air coolers, refrigeration units and condensing units, etc. They are widely used in hotels, restaurants, supermarkets, food, health, medicine, agriculture and other industries. The products are sold all over the china and in Vietnam, Thailand, Pakistan, Australia , South Africa and other overseas countries. We look forward to working with yo
Quiet,rigid low-noise cylinddrical housing;Suppior efficiency;Low vibration
Lowest applied cost.

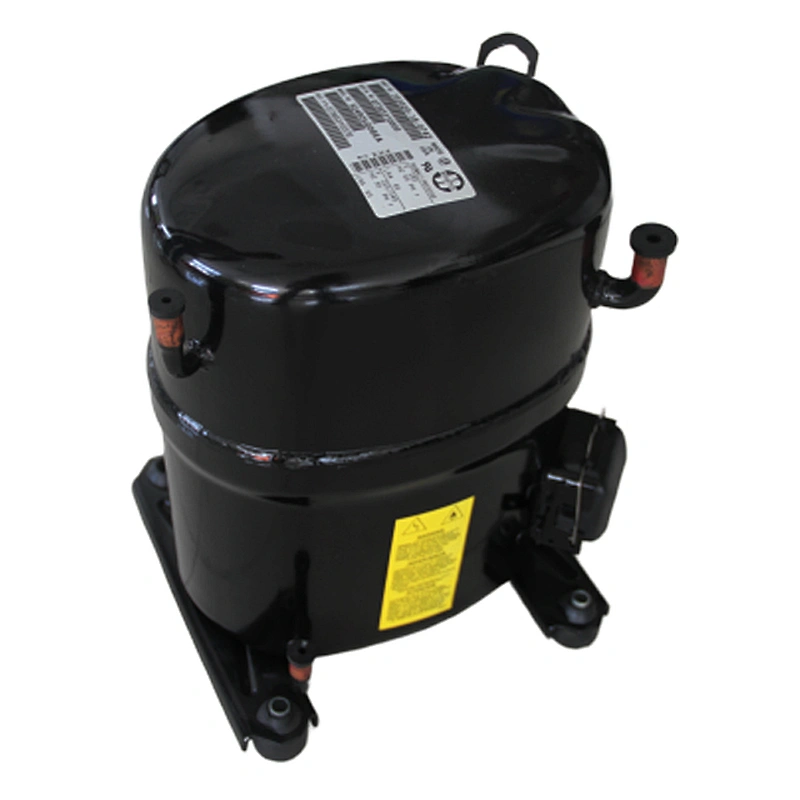

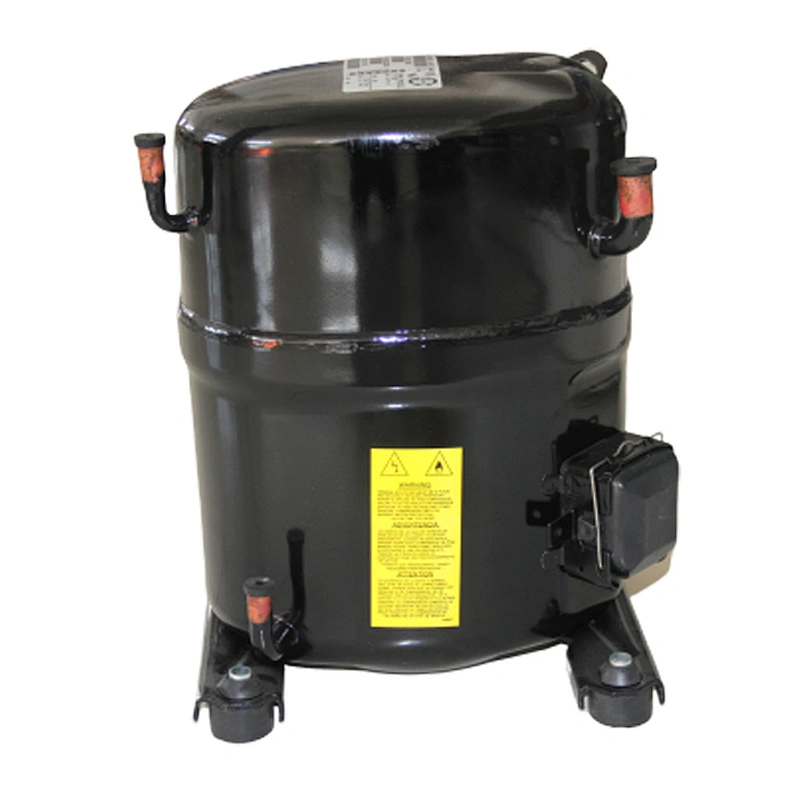

R22 refrigerant piston hermetic 3hp bristol compressor H24B31QABK
Power:3HP
LRA:72
cooling capacitry:7570w/25800BTU
Power supply:220/240V 50hz
COP:9.1

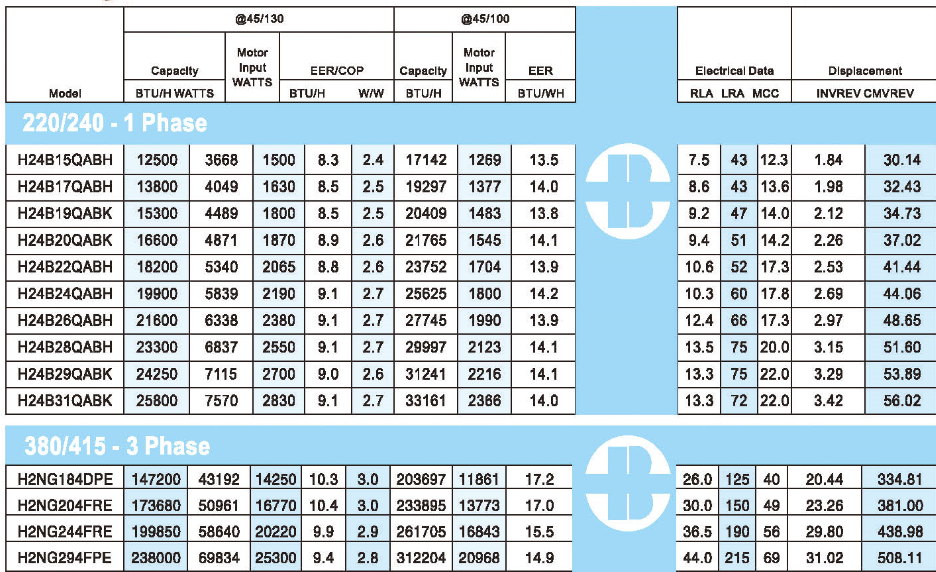

Reference other model:
Model | Capacity | Input Power(W) | EER/COP | Electrical data | Exhaust volume | Refrigeration oil(L)er m | Weight | Height | |||
BTU/H | WATTS | BTU/H | RLA | LRA | MCC | CC/REV | KG | MM | |||
H2BG094DBE | 72400 | 21244 | 7020 | 10.3 | 12 | 72 | 18 | 167.46 | 2.84 | 63 | 447 |
H2BG104DBE | 84390 | 24762 | 8155 | 10.4 | 14.2 | 77 | 20.2 | 190.57 | 2.84 | 70 | 467 |
H2BG124DBE | 97000 | 28462 | 9790 | 9.9 | 16.5 | 80 | 25 | 219.57 | 2.84 | 71 | 467 |
H2BG144DBE | 116667 | 34233 | 11550 | 10.1 | 21.6 | 126 | 34.5 | 246.56 | 2.84 | 80 | 531 |
H2NG184DPE | 147200 | 43192 | 14250 | 10.3 | 26 | 125 | 40 | 334.93 | 6.62 | 115 | 567 |
H2NG204DRE | 173680 | 50961 | 16770 | 10.4 | 30 | 150 | 49 | 381.14 | 6.62 | 118 | 567 |
H2NG244DPE | 199850 | 58640 | 20220 | 9.9 | 36.5 | 190 | 56 | 439.14 | 6.62 | 125 | 567 |
H2NG294DPE | 238000 | 69834 | 25300 | 9.4 | 44 | 215 | 69 | 508.29 |
|
|
|
Package:
