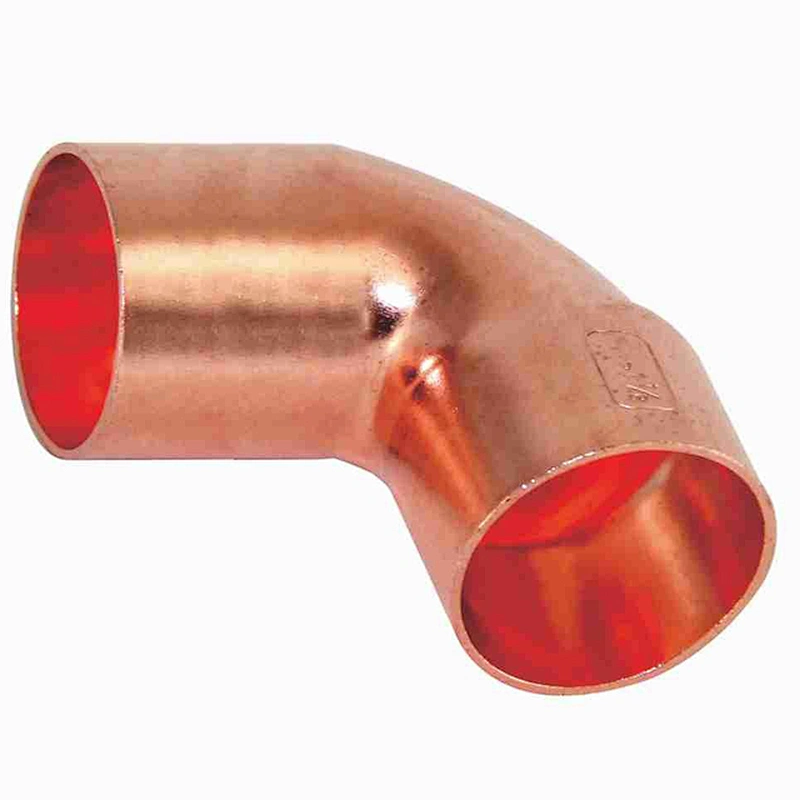

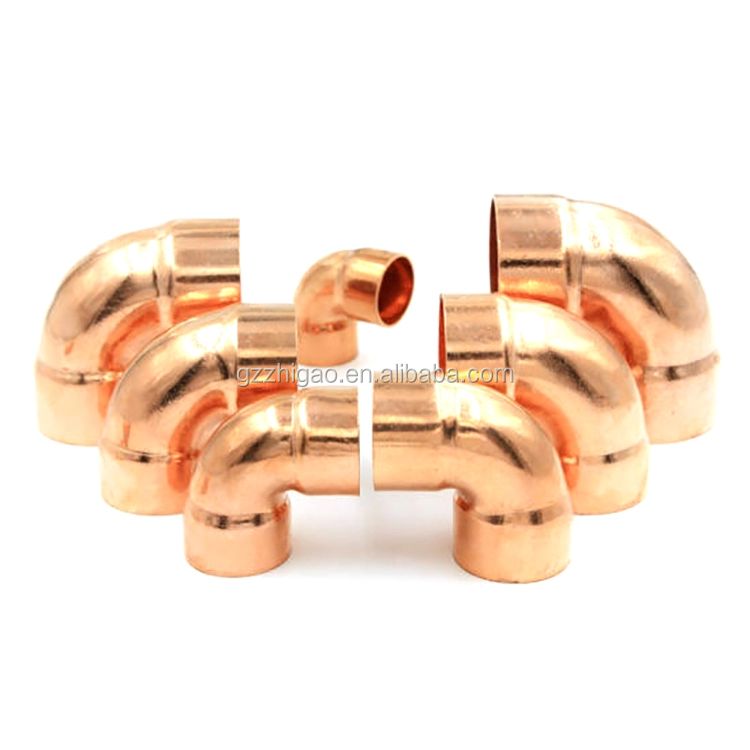

Name: high quality 90 degree copper pipe elbow/air conditioner copper pipe fittings/Copper pipe fittings
Rating: 5 (1 reviews)

Warranty:0
Place of Origin:Guangdong, China
Brand Name:/
Model Number:6.05mm~133.6mm
Technics:Forged
Connection:Forged
Shape:Equal
Head Code:Circle
Material::Copper
Connection::Female
Finish::Polishing
Product name::ELBOW
Size: Inner diameter:6.05mm~133.6mm
Pressure test::CNAS certified
Technics::Forged
Color::Red
Customization::Accept

Product Description

Specification

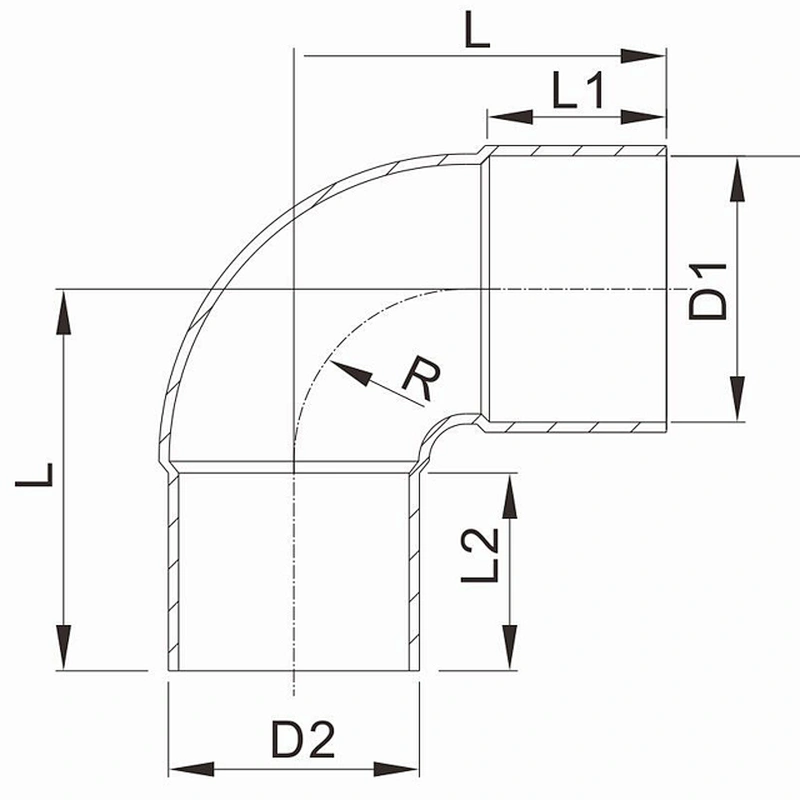

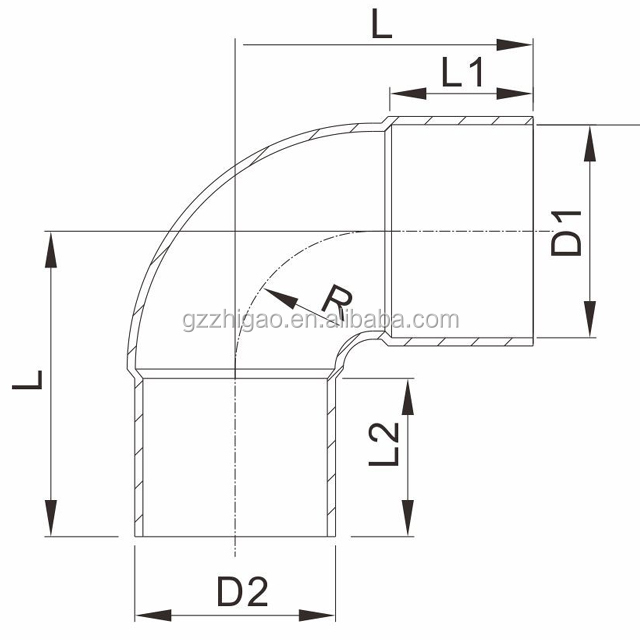

Model No.	Dimension（mm）（mm）
	D	L	L1	R	Material thickness
L-6xø6	6.05	6	12	6	6	5	0.8
L-6.35xø6.35	6.4	6.35	12	6	6	5	0.8
L-8xø8	8.05	8	14	7	7	6	0.8
L-9.52xø9.52	9.58	9.52	16	8	8	7	0.8
L-10xø10	10.05	10	17	8	8	7	0.8
L-12xø12	12.05	12	19	9	9	8.5	0.8
L-12.7xø12.7	12.75	12.7	20	10	10	8.5	0.8
L-15xø15	15.07	15	23	11	11	19	0.8
L-15.88xø15.88	15.95	15.88	24	12	12	19	0.8
L-16xø16	16.07	16	25	12	12	19	0.8
L-19xø19	19.1	19	28	13	13	23	0.9
L-22xø22	22.1	22	31	15	15	15	1
L-22.23xø22.23	22.33	22.23	32	15	15	15	1
L-25xø25	25.1	25	35	17	17	16	1.1
L-25.4xø25.4	25.5	25.4	36	17	17	16	1.1
L-28xø28	28.1	28	39	19	19	18	1.1
L-28.6xø28.6	28.7	28.6	39	19	19	18	1.1
L-32xø32	32.1	32	43	21	21	20	1.2
L-35xø35	35.1	35	47	22	22	22	1.3
L-38xø38	38.1	38	48	23	23	24	1.4
L-42xø42	42.1	42	54	25	25	26	1.5
L-50xø50	50.15	50	62	28	28	31	1.7
L-54xø54	54.15	54	66	30	30	33	1.7
L-67xø67	67.15	67	79	35	35	41	1.8
L-76xø76	76.2	76	89	38	38	47	2
L-79.4xø79.4	79.45	79	92	40	40	48	2
L-80xø80	80.2	80	93	40	40	49	2
L-85xø85	85.2	85	98	42	42	48	2
L-89xø89	89.2	89	103	44	44	54	2.3
L-92xø92	92.2	92	105	45	45	56	2.3
L-105xø105	105.3	105	119	50	50	64	2.8
L-108xø108	108.3	108	121	50	50	66	2.8
L-133xø133	133.6	133	144	58	58	81	3

Packing & Delivery

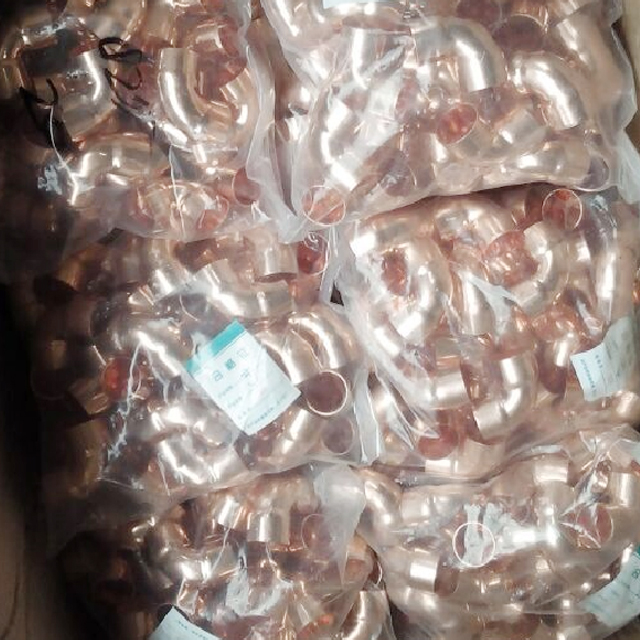

Packing: different size the package quantity it's different

Production advantage

(1)economy.Due to copper tube processing and connection, in the installation, can save the material and the total cost, stability
can be reliable copper tube, can save maintenance.
(2)light.For same diameter of ground screw tube, the thickness of the copper pipe don't need black metal.When installation, copper
pipe conveying cost is smaller, maintenance easier, smaller footprint.
(3)change shape.Because copper tube can be bent, deformation, it can often make it bend and joints, smooth curve allows copper
tube bending in any Angle.
(4)easy connection.
(5)security.No leakage, no combustion, do not produce poisonous gas, corrosion resistance.
