Name: Condensing Unit Spare Part Hand Valve Refrigeration and AC Accessory Parts Model KM Diaphragm Hand Valve Stop Valve 1/4 to 7/8
Rating: 5 (1 reviews)

Condition:New
Applicable Industries:Building Material Shops, Manufacturing Plant, Retail, Construction works
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Hot Product 2019
Place of Origin:Guangdong, China
Brand Name:Hongsen
Type:Other
Application:Refrigeration Parts
Warranty:Unavailable
Size:1/4 to 7/8
Materil:yellow copper
Keyword:Stop valve for one-way flow control
Connection:SAE/ODF
After Warranty Service:No service
Local Service Location:None
Certification:ce
After-sales Service Provided:Video technical support

Condensing Unit Spare Part Hand Valve Refrigeration and AC Accessory Parts Model KM Diaphragm Hand Valve Stop Valve 1/4 to 7/8

Product Description

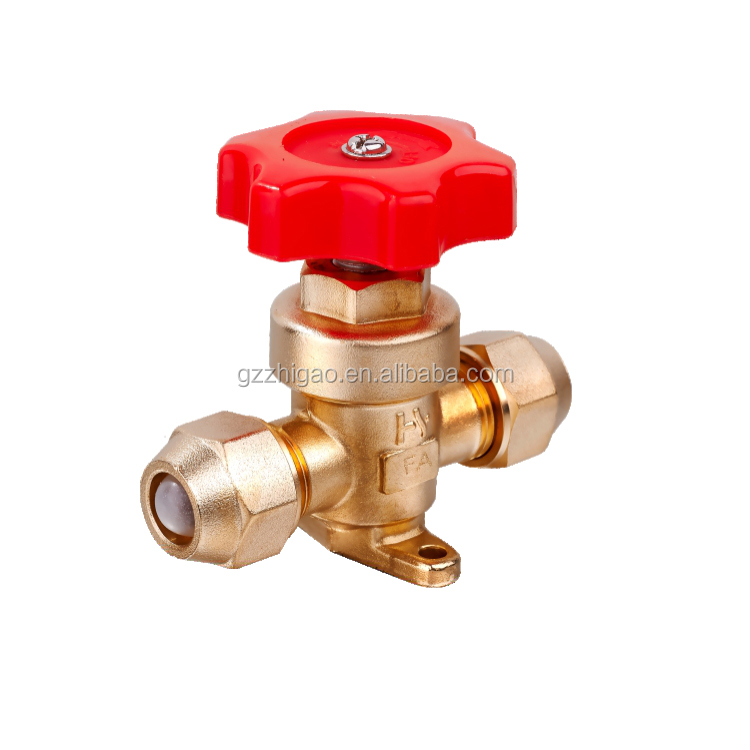

*Model KM hand valve is a manually operated diaphragm stop valve for one-way flow control.

* Model KM hand valve is mounted on the liquid, air suction and hot air piping in the refrigeration, cold storage and air conditioner.

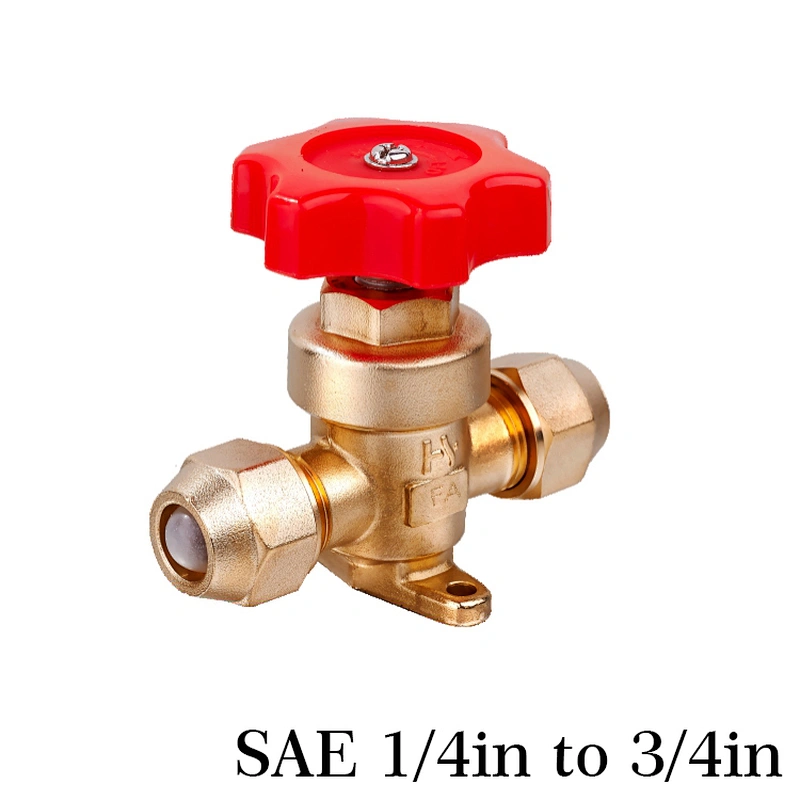

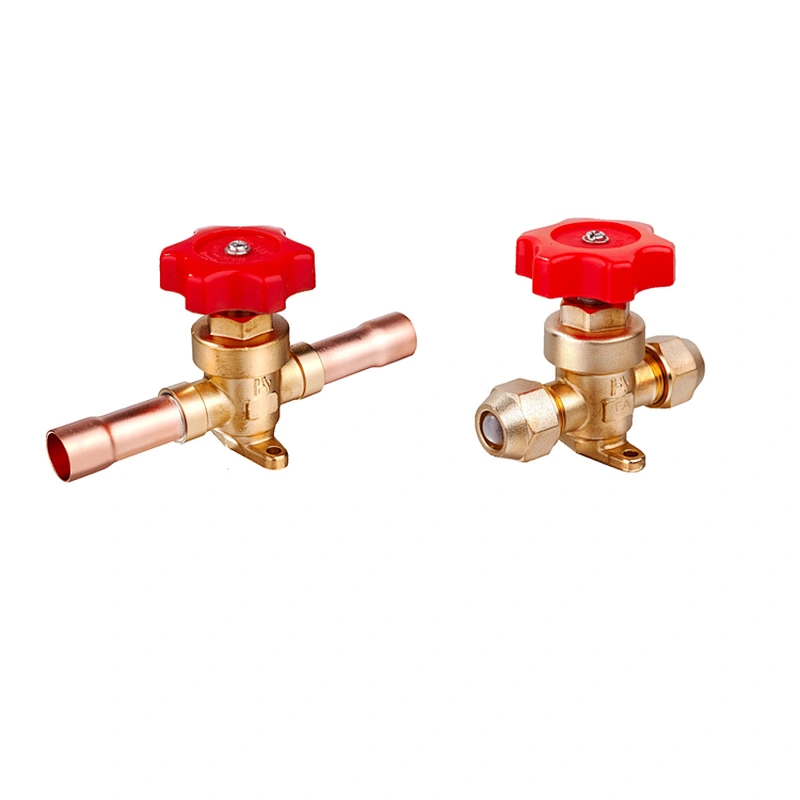

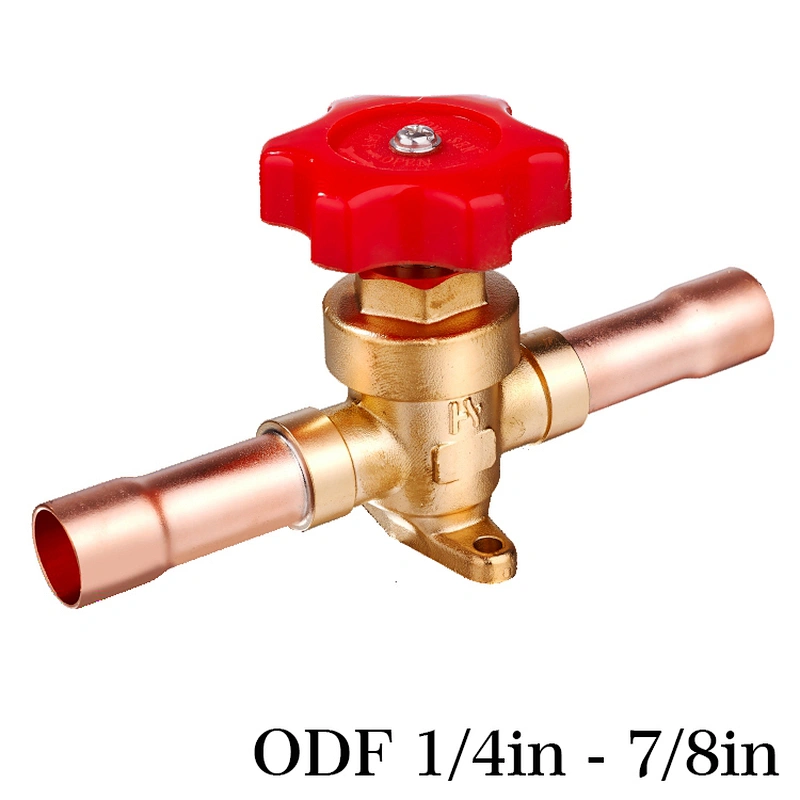

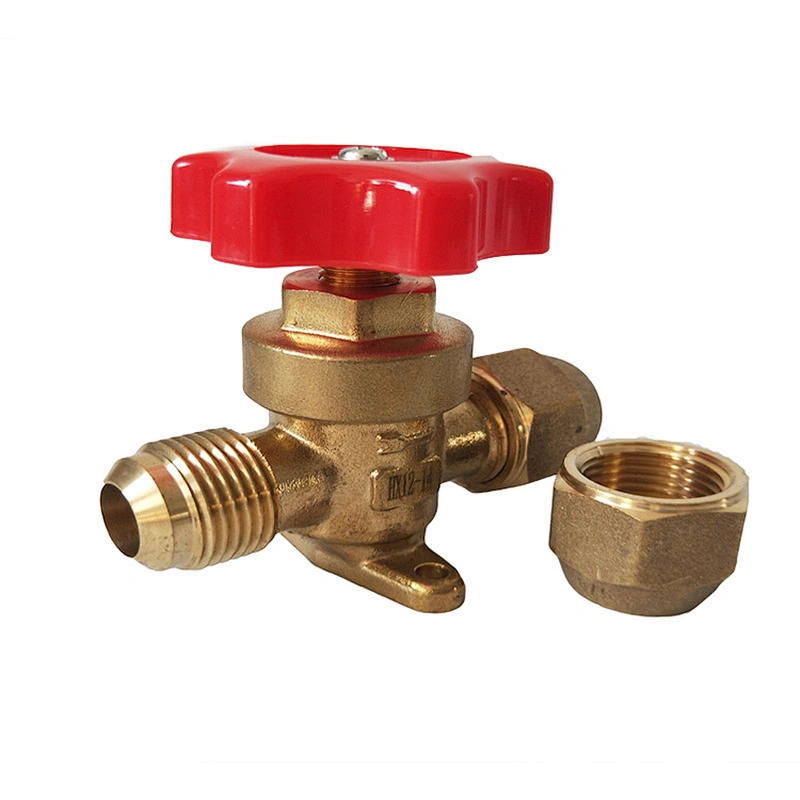

* Two types of connection are available for Model KM hand valve, that is, threaded connection (SAE) with threading size 1/4 SAE to 3/4 SAE and welded connection both ODF, structure hand valves have connection size 1/4” to 7/8”.
* All Model KM hand valves are equipped with mounting hole for the installation on the instrument panel.

Specification

Model	Flare	Welded(with copper tube)	Kv(㎥/h)
KM-1/4	1/4 SAE	1/4 ODF	0.28
KM-3/8	3/8 SAE	3/8 ODF	0.30
KM-1/2	1/2 SAE	1/2 ODF	1.30
KM-5/8	5/8 SAE	5/8 ODF	1.80
KM-3/4	3/4 SAE	3/4 ODF	3.65
KM-7/8	——	7/8 ODF	3.65

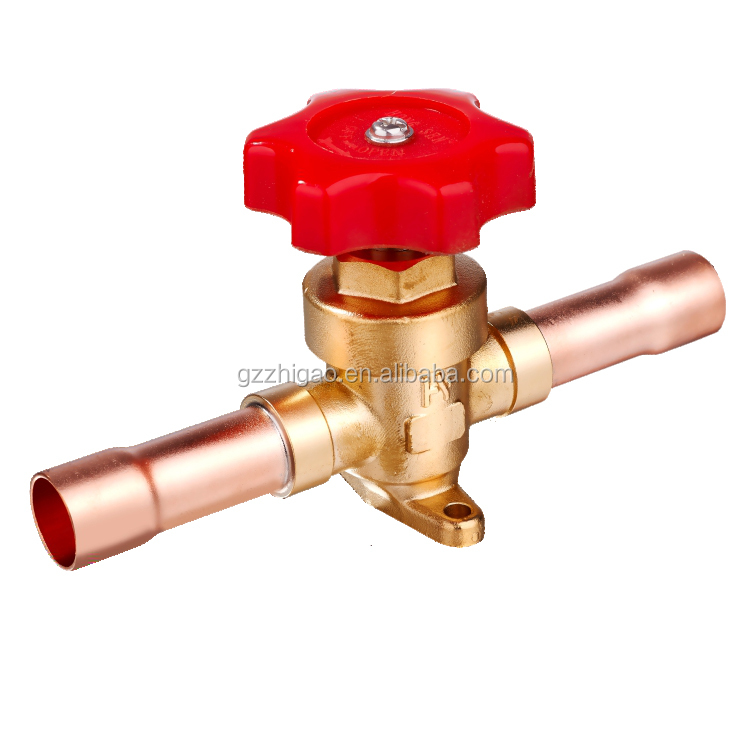

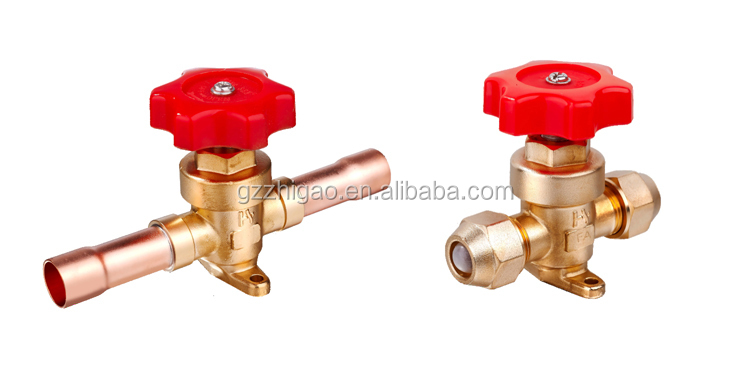

Details Images

Technical Parameters

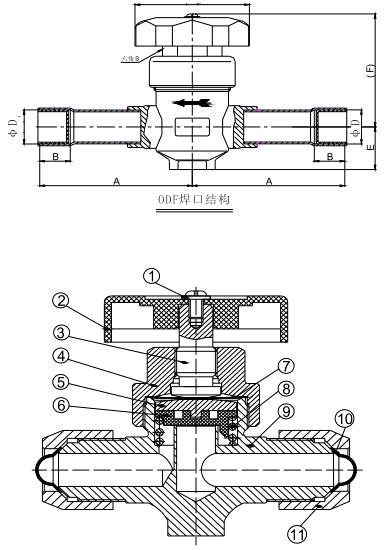

1、screw; 2、hand wheel; 3、valve stem; 4、valve bonnet; 5、copper sheet; 6、valve element; 7、diaphragm; 8、spring; 9、valve body; 10、dustcap; 11、v nut(piping nut)
