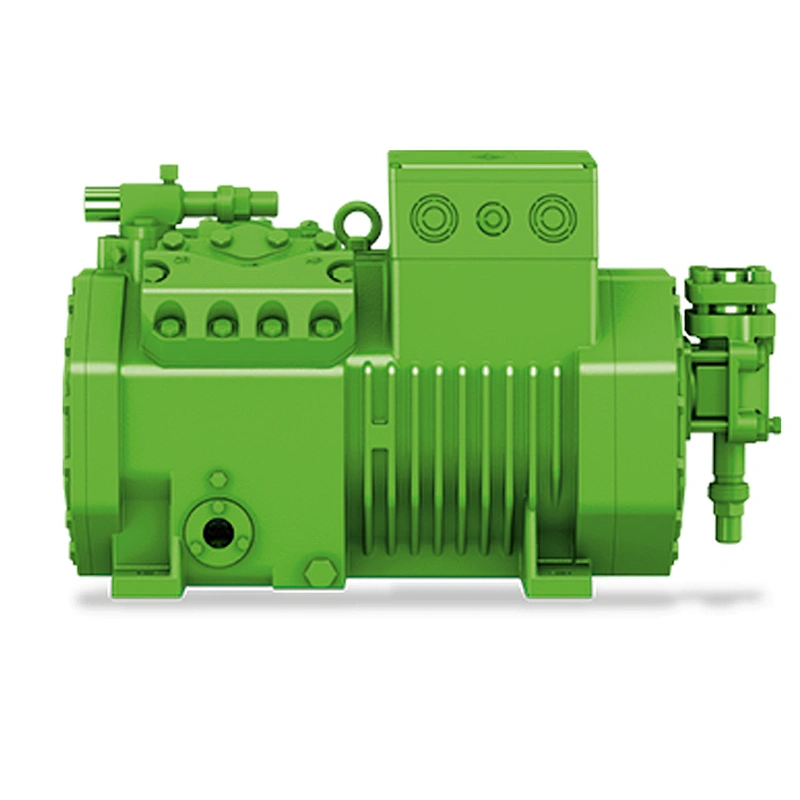

Name: Beijing 6HP Semi-hermetic Reciprocating Compressors 4CES-6(Y) 32,48KW
Rating: 5 (1 reviews)

Condition:New
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:None
Video outgoing-inspection:Not Available
Machinery Test Report:Not Available
Marketing Type:Ordinary Product
Place of Origin:China
Type:Refrigeration Compressor
Application:Refrigeration Parts
Warranty:Unavailable
Displacement (1450 RPM 50Hz):32,48 m3/h
Displacement (1750 RPM 60Hz):39,20 m3/h
No. of cylinder x bore x stroke:4 x 55 mm x 39,3 mm
Max. pressure (LP/HP):19 / 32bar
Weight:90,5 kg
Model:4CES-6(Y)
Connection suction line:28 mm - 1 1/8''
Connection discharge line:22 mm - 7/8''
Motor version:2
Starting current (Rotor locked):82.4 A
After Warranty Service:Online support
Local Service Location:None
After-sales Service Provided:Online support

Product Description

TECHNICAL DATA

	SI	IP
Displacement (1450 RPM 50Hz)	32,48 m3/h	1147.0 CFH
Displacement (1750 RPM 60Hz)	39,20 m3/h	1384.3 CFH
No. of cylinder x bore x stroke	4 x 55 mm x 39,3 mm	4 x 2.17 inch x 1.55 inch
Weight	90,5 kg	200 lb
Max. pressure (LP/HP)	19 / 32bar	275 / 464 psi
Connection suction line	28 mm - 1 1/8''	28 mm - 1 1/8''
Connection discharge line	22 mm - 7/8''	22 mm - 7/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) \| R134a tc>70°C: BSE55 (Option)	BSE32(Standard) \| R134a tc>155°F: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2 (Option)	B5.2 (Option)
Oil type R1234yf/R1234ze	BSE32 (Standard) \| R1234ze tc>70°C & to>0°C: BSE55 (Option) \| R1234ze to>15°C: BSE85K (Option)	BSE32 (Standard) \| R1234ze tc>70°C & to>0°C: BSE55 (Option) \| R1234ze to>15°C: BSE85K (Option)

EXTENT OF DELIVERY (STANDARD)

AVAILABLE OPTIONS

	SI	IP
Discharge gas temperature sensor	Option	Option
Crankcase heater	0..120 W PTC (Option)	0..120 W PTC (Option)
Oil level monitoring	OLC-K1 (Option)	OLC-K1 (Option)
Capacity control	100-50% (Option)	100-50% (Option)
Capacity Control - infinite	100-10% (Option)	100-10% (Option)
Additional fan	Option	Option

MOTOR DATA

SI	IP
Motor version	2	2
Starting current (Rotor locked)	82.4 A	88.0 A
Motor voltage (more on request)	380-420V Y-3-50Hz	440-480V Y-3-60Hz UL
Max operating current	17.7 A	17.7 A

SOUND MEASUREMENT

Beijing 6HP Semi-hermetic Reciprocating Compressors 4CES-6(Y) 32,48KW
