1.Product name:

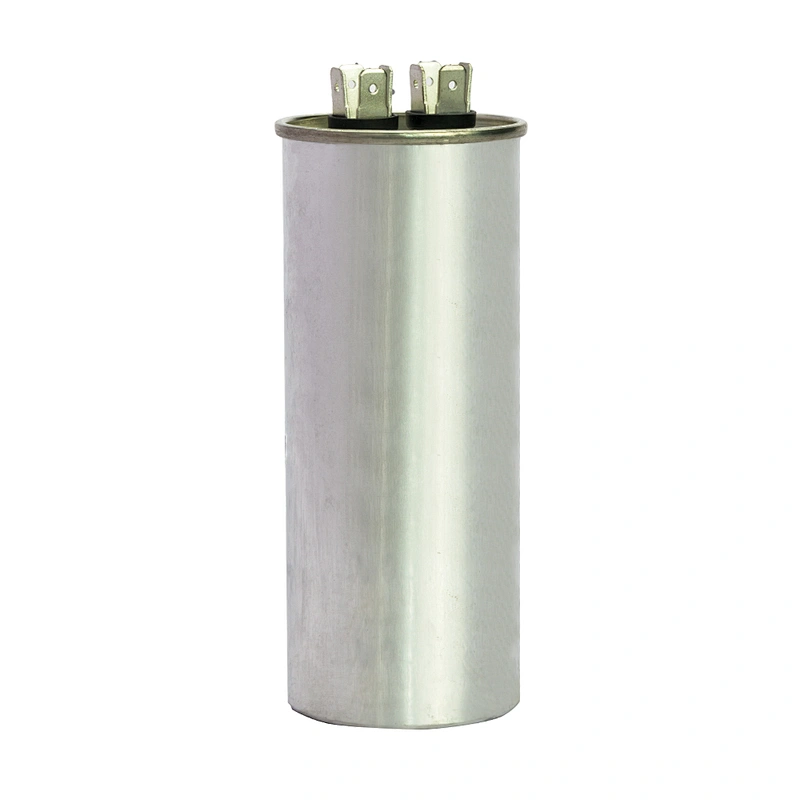

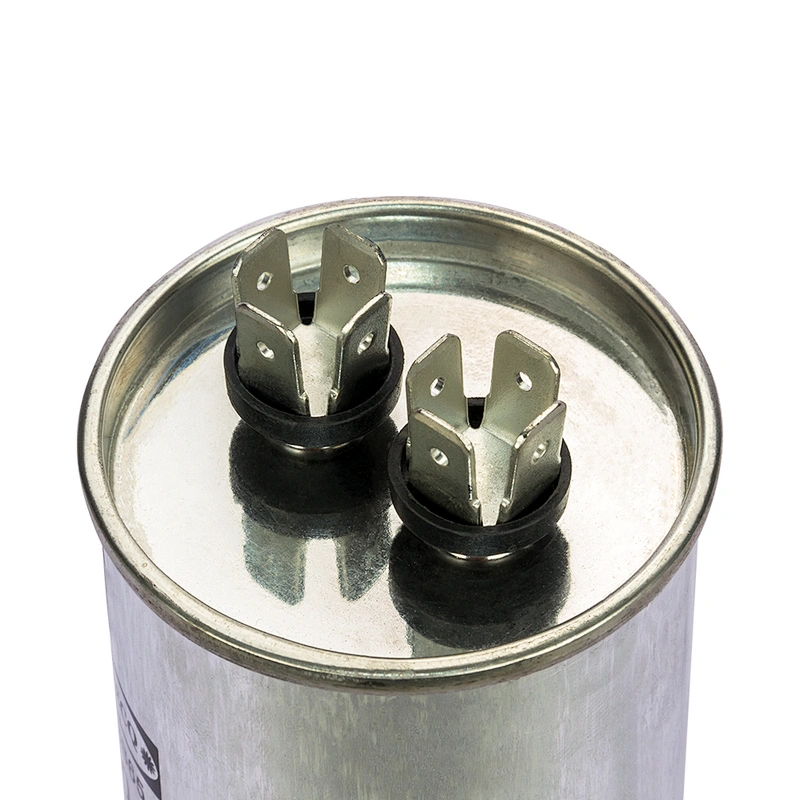

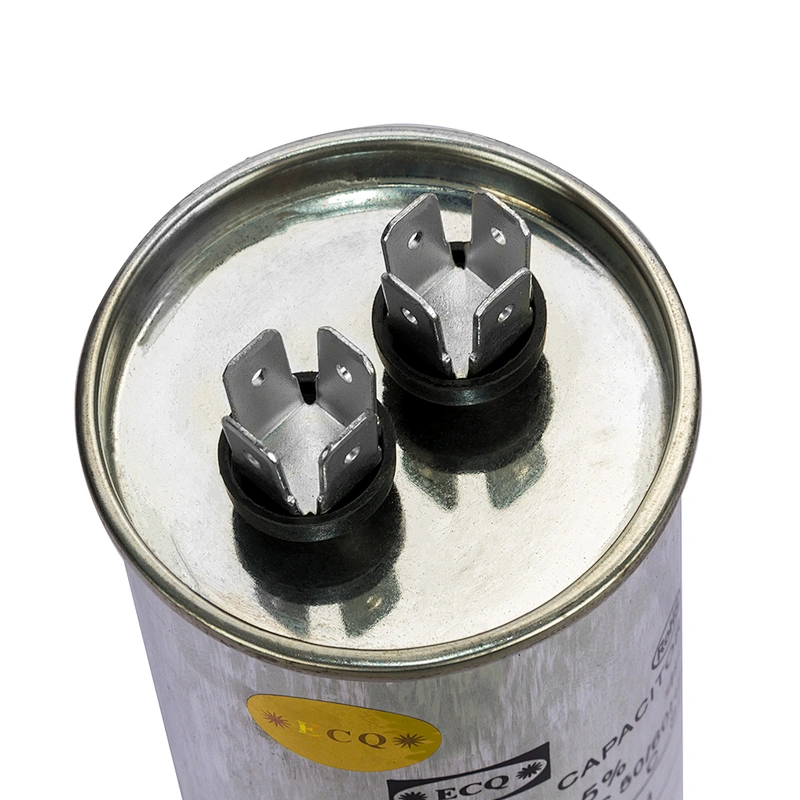

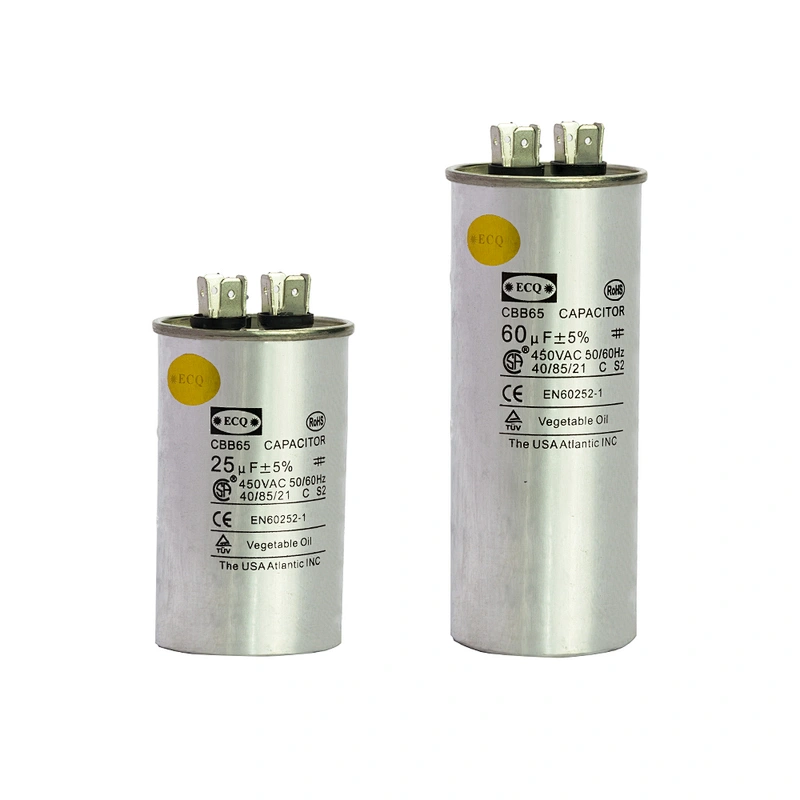

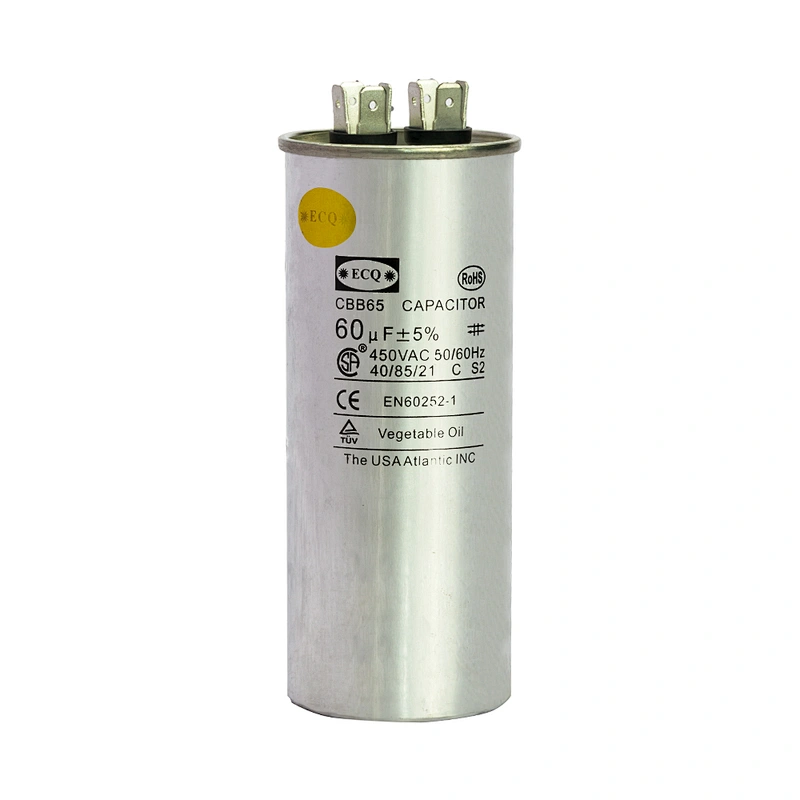

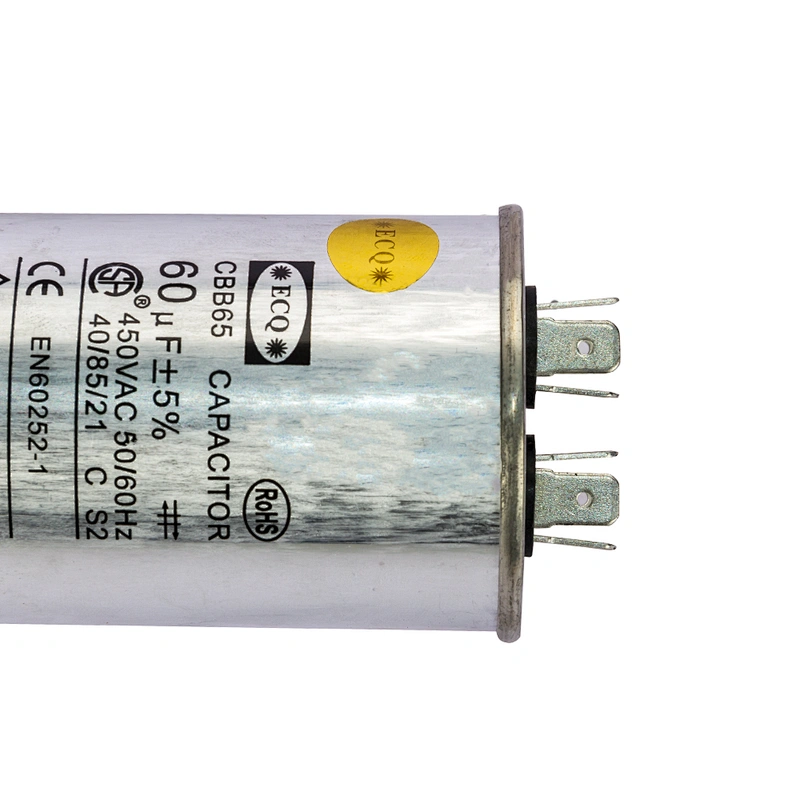

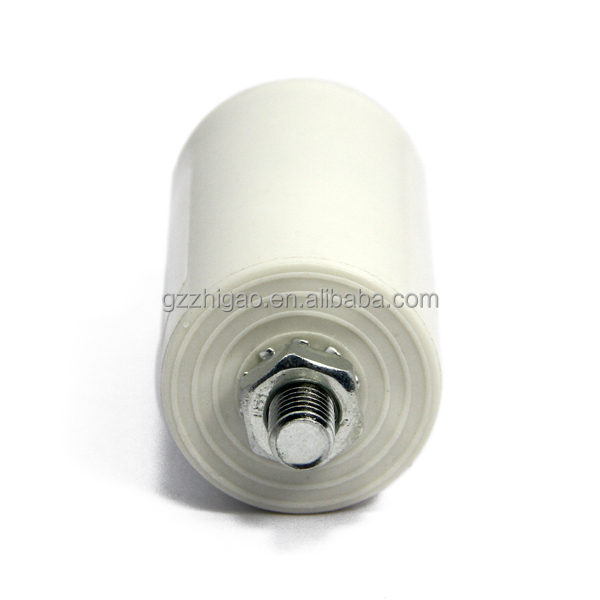

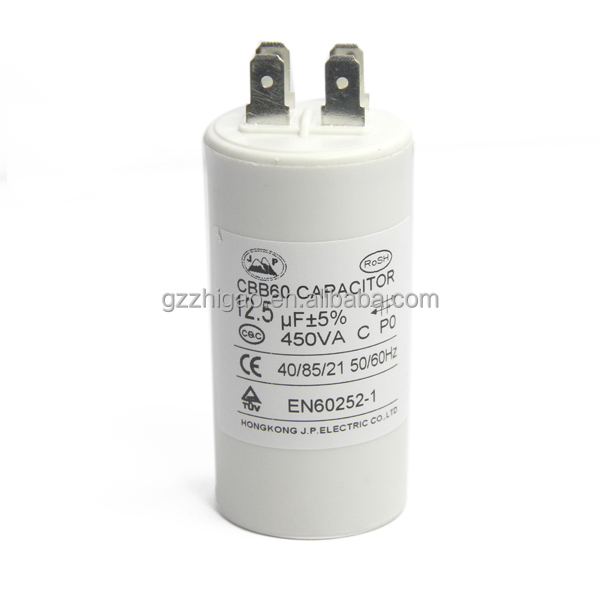

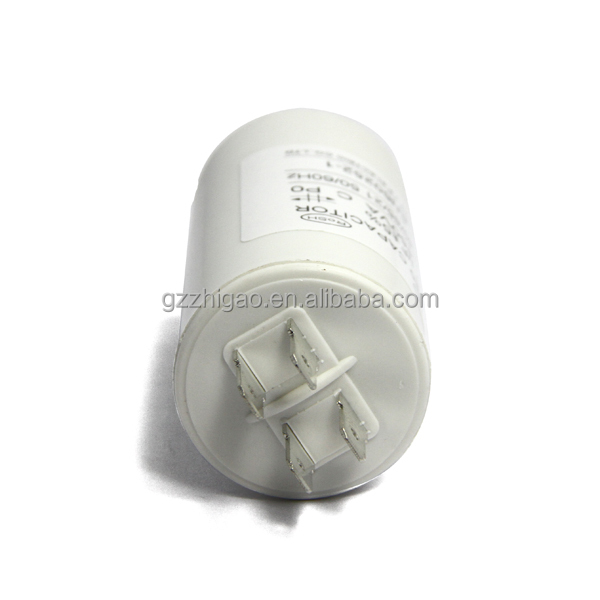

CBB60 AC motor capacitor
2.Features adn Useages
Low dissipation factor,high insulation resistance,good self-healing,steady preformance.
It can be use in washing machine,motor,water pump.
3.Technial parameter.
Temp:-40 degree to 85 degree.
Rated voltage:200~500V
Range:1~100uf
Frequency:50/60HZ
4.Outer sizes:
| Capacitance(uf) | 200~300VAC | 370~400VAC | 440~450VAC | |||
| Diameter(mm) | Height(mm) | Diameter(mm) | Height(mm) | Diameter(mm) | Height(mm) | |
| 2uf | 30 | 60 | 30 | 60 | 30 | 60 |
| 5uf | 30 | 60 | 30 | 60 | 30 | 60 |
| 7.5uf | 30 | 60 | 30 | 60 | 30 | 70 |
| 10uf | 30 | 70 | 35 | 75 | 35 | 70 |
| 15uf | 35 | 70 | 35 | 70 | 40 | 70 |
| 20uf | 35 | 70 | 40 | 70 | 40 | 70 |
| 25uf | 40 | 70 | 45 | 75 | 45 | 90 |
| 30uf | 45 | 75 | 45 | 90 | 45 | 90 |
| 35uf | 45 | 75 | 45 | 90 | 45 | 90 |
| 40uf | 45 | 90 | 50 | 95 | 50 | 100 |
| 45uf | 45 | 90 | 50 | 100 | 50 | 100 |
| 50uf | 45 | 90 | 50 | 100 | 50 | 100 |
| 55uf | 45 | 90 | 50 | 100 | 50 | 100 |
| 60uf | 45 | 90 | 50 | 100 | 50 | 125 |
| 70uf | 50 | 100 | 50 | 125 | 50 | 125 |
| 80uf | 50 | 125 | 55 | 125 | 55 | 135 |
| 100uf | 55 | 125 | 55 | 125 | 60 | 135 |

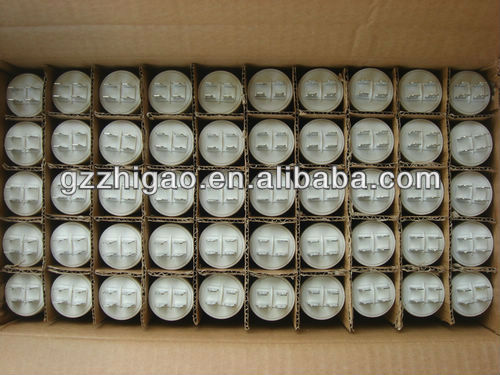

5.Packing Pictures.

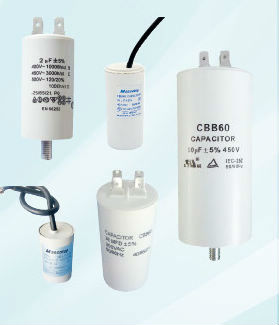

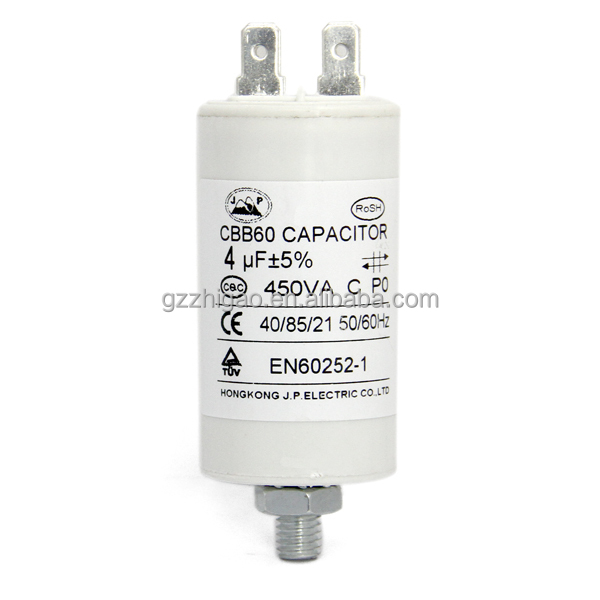

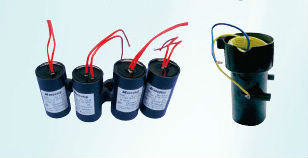

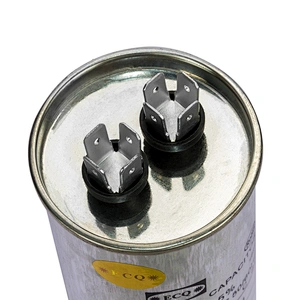

5.Other CBB60 AC motor capacitors
